Description

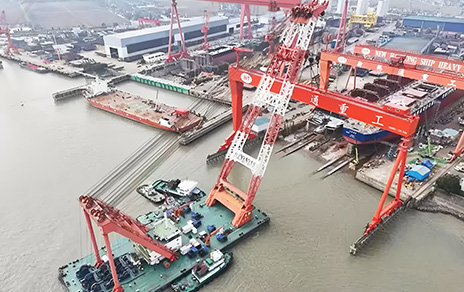

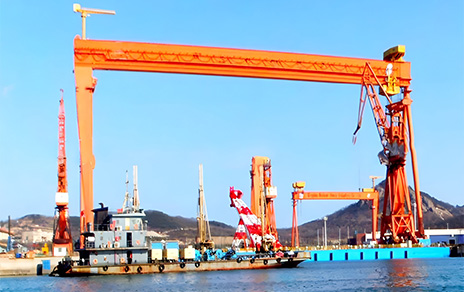

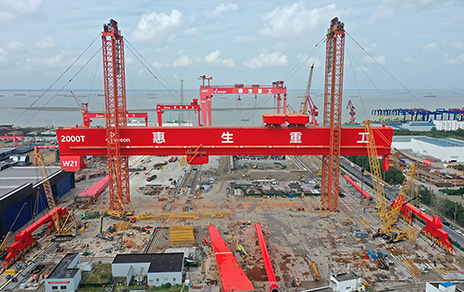

The shipyard gantry crane is a kind of port crane designed for the shipbuilding industry. It is mainly used for lifting the hull sections, assembling parts and turning over the hull. The load capacity is 100~2000 tons, which can meet the needs of large ship construction.
The equipment consists of a bridge, a trolley running mechanism, a trolley and electrical equipment. The bridge adopts a box-type welded structure, which runs smoothly and is flexible to operate. The shipbuilding gantry crane has multifunctional characteristics, such as lifting up and down, transporting sections, turning over the hull, etc.
WEIHUA provides shipyard gantry crane customized design and manufacturing services to meet the special needs of different shipyards. Free consultation, fast quotation, professional team to provide you with a one-stop crane solution.
Specifications
| Loading Capacity | 2×50+100t、2×75+100t、2×100+160t、2×150+200t、2×400+400t or customized |
| Span | 50～185m or customized |
| Lifting Height | 28～76/10～50m or customized |
| Lifting Speed | Main hook lifting: 0~1 m/min or customized |
| Aux.hook lifting: 0~5 m/min or customized | |
| Cross Travel | 0~8m/min or customized |
| Long Travel | 0~25m/min or customized |
| Span | 36~230m or customized |
| Lifting Mechanism | Electric winch trolley(single trolley, upper trolley, lower trolley, double trolley, or customize) |
| Electrical Parts Brand | SCHNEIDER, SIEMENS, CHNT, or customized |
| Motor Brand | ABM. ABB, WEG, JMS, XINDALI, SIEMENS, or customized |
| Reducer Brand | SEW, TAILONG, or customized |
| Brake Brand | JINGU, ZPMC, or customized |
| Work Duty | M7~M8 |
| Power Supply | AC-3Phase-220/230/380/400/415/440V-50/60Hz or customized |
| Control Method | Wireless remote control, cabinet control |
| Application Area | Shipyard, dock, power station, logistic, etc. |
| Color | Red, blue, or customized |
| Working Temperature | -20~40℃ or customized |
| Protection Class | IP54 / IP55 / IP65 |
| Safety Device | Buffer, current overload protection, overload device, power failure protection, lifting height limit device, traveling limit device |
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
