Description

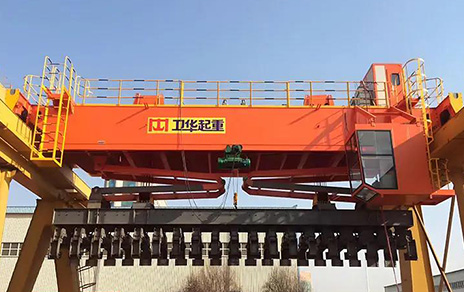

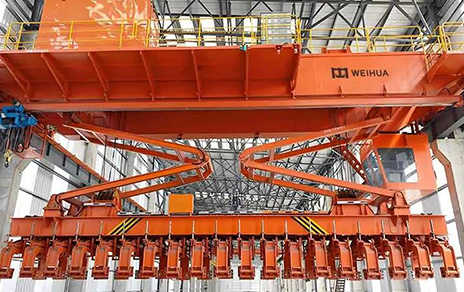

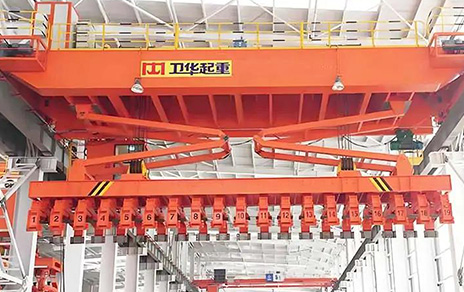

Anode carbon block overhead stacker crane is an overhead crane, used for loading and unloading equipment for the carbon block and aluminum electrolysis factory.. It is mainly used for stacking and transporting raw and cooked anode carbon blocks and roasted anode blocks (19 blocks for 1 group), and can also be used for rejecting waste blocks and inserting qualified blocks. It can be equipped with a 5-ton electric hoist for sporadic lifting.
Specifications
| Systems | Item | Unit | Horizontal clamping block | Longitudinal clamping block |
| Bridges | Span | m | 13.5～22.5 | 13～34 |
| Running Speed | m/min | 5～60 | 5～60 | |
| Working class | - | M6～M8 | M6～M8 | |
| Main winch system | Lifting capacity (including clamps) | t | 16～25 | 16～80 |
| Lifting speed | m/min | 2～6.5 | 2～8 | |
| Working class | - | M6～M8 | M6～M8 | |
| Fixture | Clamping method | - | Self-weighting linkage | Self-weight connecting rod |
| Clamping force | kN | 30~33 | ≥30 | |
| Electric Hoist | Lifting capacity | t | 2 | 2～5 |
| Working level | - | M3 | M3～M4 | |
| Vehicle | Working level | - | A6～A8 | A6～A8 |
| Intelligent Degree | Stand-alone control level | L1 | ||
| Workshop control level | L2 |
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Bridge assembly
high-strength box beam structure design, equipped with torsion-resistant end beam assembly.
Clamping and lifting system
the main winch mechanism adopts a double-braking configuration, the dynamic/static pulley block realizes 4:1 multiplication transmission, the balance wheel ensures the balance of the wire rope tension; the hydraulic clamping device is equipped with a pressure feedback function.
Running mechanism
Equipped with a frequency conversion drive electric hoist, double-track guiding device, and redundant limit protection system.
Intelligent control system
automatic laser positioning (±2mm accuracy), real-time weighing detection (0.5% accuracy), adaptive calculation of stacking height, self-diagnostic fault function.
