Description

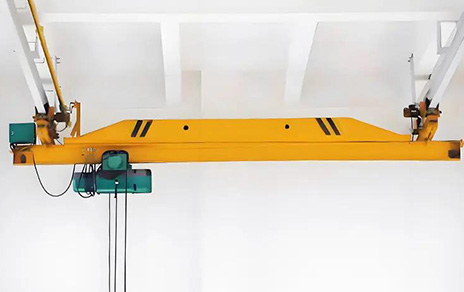

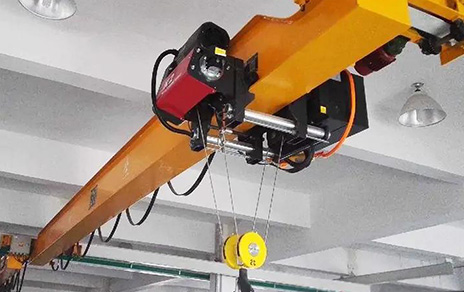

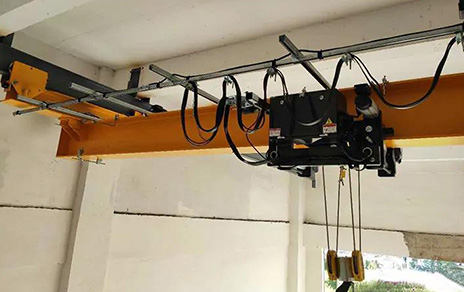

Single-girder underhung bridge crane usually uses I-beams as running rails and are suspended from steel structures or prefabricated roof beams, and their structure is similar to that of electric single-girder overhead cranes. Due to the special use of the underhung crane system, the roof load-bearing capacity requirements are high, so the lifting capacity is relatively small, generally not more than 10 tons, and the span of 3-16m, which can be customized according to user requirements for design.
The crane running mechanism is the same as the electric hoist running mechanism, and the main beam is supported by the suspension lifting beam to realize the smooth lifting and running of heavy objects. It is suitable for places with limited space, such as workshops, warehouses, etc. It is an ideal solution for light operation in low-headroom workshops.
Specifications
| Terms | Unit | Magnitude |
| Loading capacity | ton | 0.5~10 |
| Span | meter | 3~22.5 |
| Crane traveling speed | m/min | 20m/min |
| Lifting speed | m/min | 7~8, 0.7~0.8/7~8 |
| Trolley traversing speed | m/min | 20m/min |
| Working Grade | -- | A3 |
| Power supply | -- | 3ph, 380V, 50Hz or customize |
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Compact structure and high space utilization
Directly installation on the existing beam frame of the factory or warehouse, without the need for additional columns or supporting structures, saving ground space.
Flexible and smooth operation
It supports a variety of operation modes, including ground handle operation and wireless remote control operation. It is easy to operate and can quickly adapt to different work scenarios.
Easy installation and low maintenance cost
Due to the suspended design, the installation process of the LX model is relatively simple and does not require complex civil engineering.
Strong applicability and lower cost
Suitable for a variety of working environments, meeting the use needs of general light industry and warehousing scenarios. Simple structure, lower cost as one light lifting equipment.
