Description
The overhead ladle crane is a double girder bridge crane, specially designed for the steel mill and used for lifting molten metal in metallurgy. It is particularly for handling molten metal, hot steel, and other high-temperature materials.
The overall structure can be divided into double girders with double tracks, four grinders with four tracks, four beams with six tracks, and other types. The former two are generally for large-tonnage overhead cranes, and the third one is for foundry cranes with large tonnage. The hoisting mechanism is an electric trolley with multiple brakes for reliable lifting capability and safety. With heat radiation reflectors, overhead ladle cranes have great heat resistance and performance in hot circumstances. In addition, we offer the following optional features: rotary spreader, fixable gantry hook, cargo weighing, and display.
Specifications
| Item | QDY overhead ladle crane |
| Loading capacity | 5 ~ 75 ton |
| Lifting height | Customized |
| Lifting speed | Varies with lifting capacity |
| Span | 10.5 ~ 31.5 m |
| Lifting mechanism | Winch trolley |
| Working class | A7/A8 |
| Working temperature | -20 ~ +60 ℃ |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC-36 / 48V |
| Motor protection class | IP54 IP55 IP65 |
| Control way | Cabin, wireless remote, pendant push button |
| Safety device | Factory, workshop, warehouse, power station, logistics,etc. |
| Application area | Factory, workshop, warehouse, power station, logistics, etc. |
| Painting color | Yellow, Red, or Customized |
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Safety and stability
Equipped with overload protection, anti-collision device, limit switch, etc., to ensure the safety of operation. At the same time, the bridge structure and sturdy manufacturing process keep it stable during operation.
Flexibility and precise control
With multi-axis control and variable frequency speed regulation functions, making the operation more flexible and precise, and adapting to different operating requirements.
Adapt to harsh environment
Due to its ability to work in harsh environments with high temperature, high dust, and harmful gases, QDY overhead ladle crane has the characteristics of heat insulation, dust prevention, and corrosion resistance, and is suitable for long-term stable operation under the harsh conditions of the metallurgical industry.

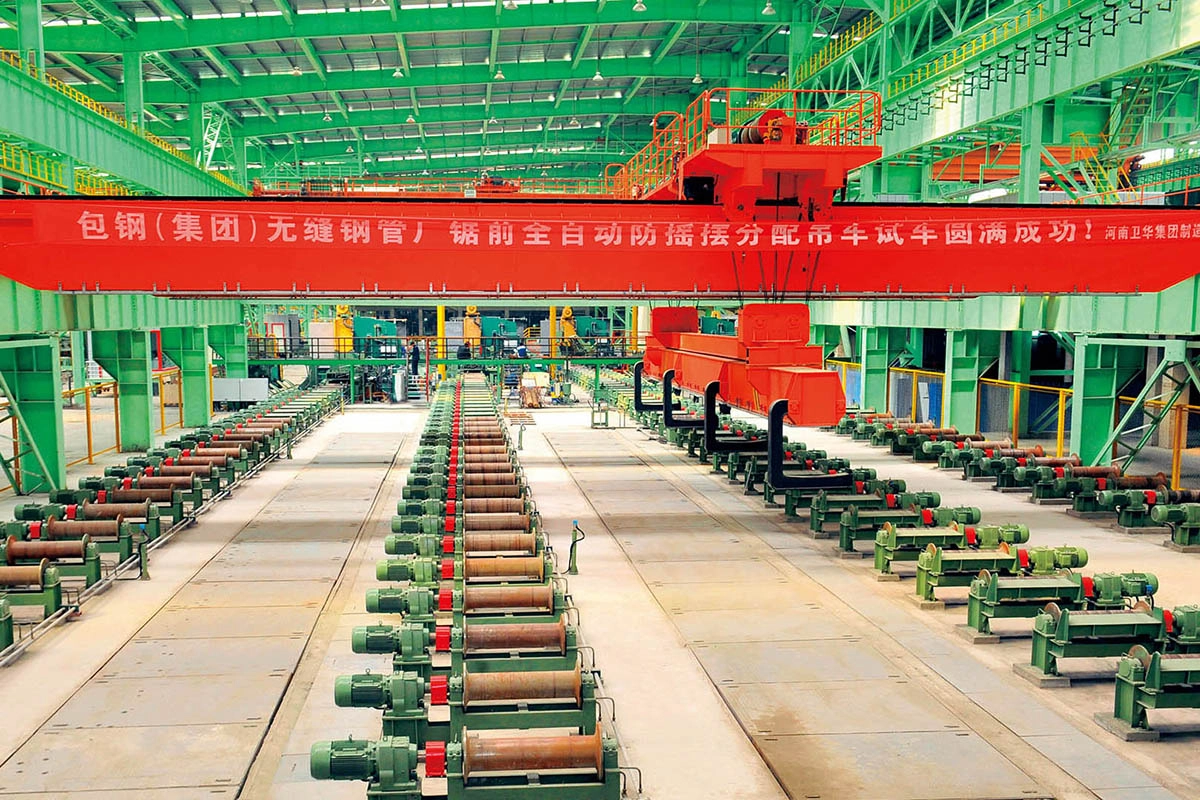

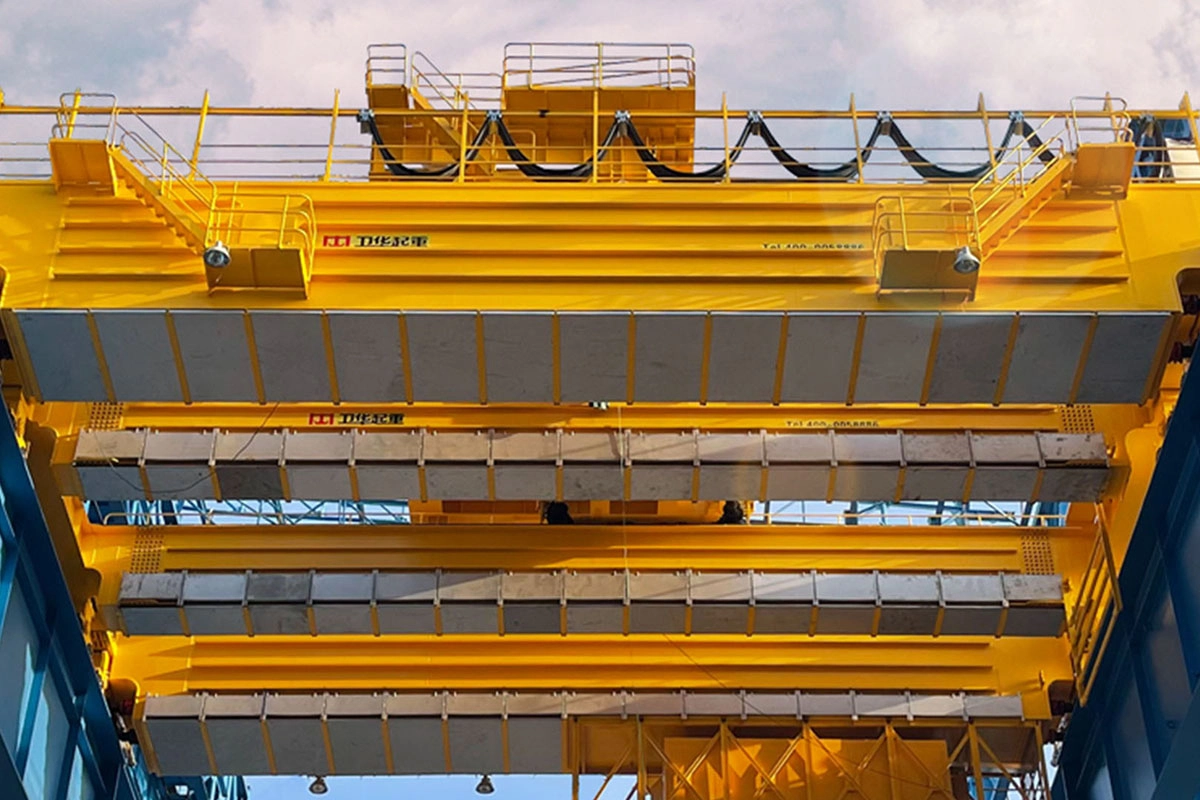

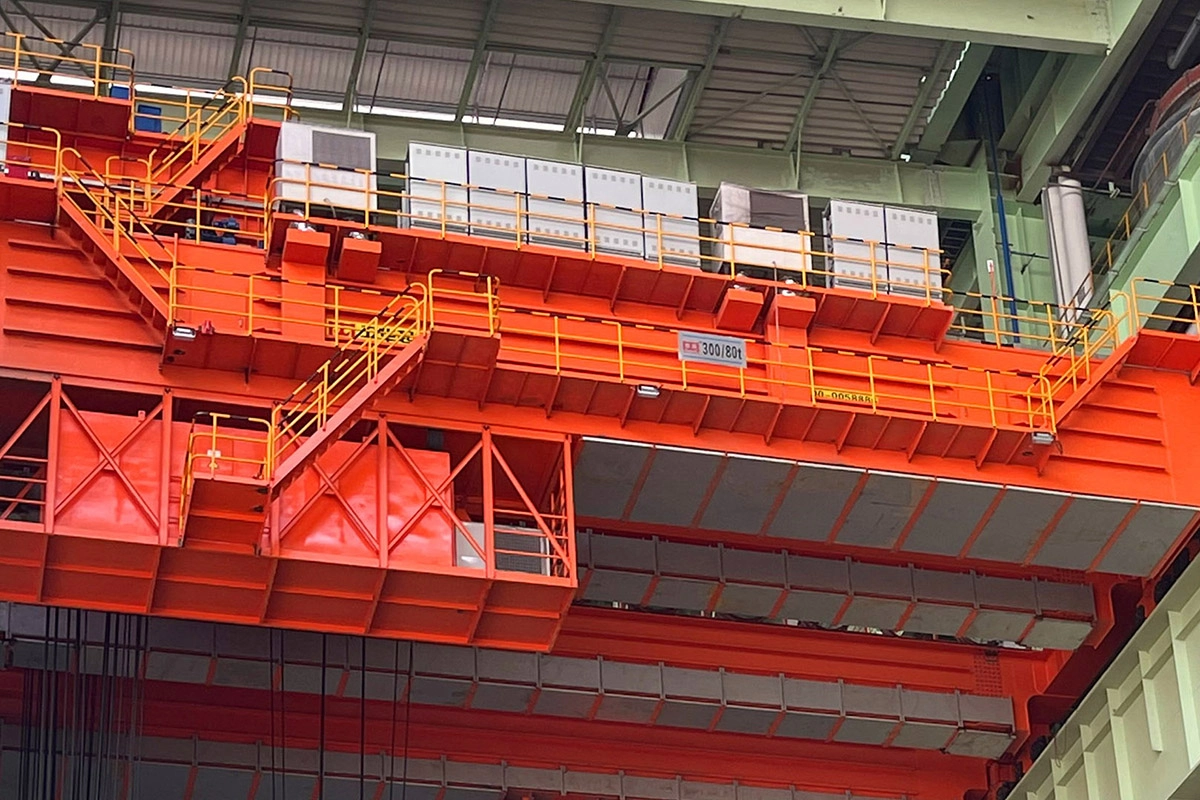

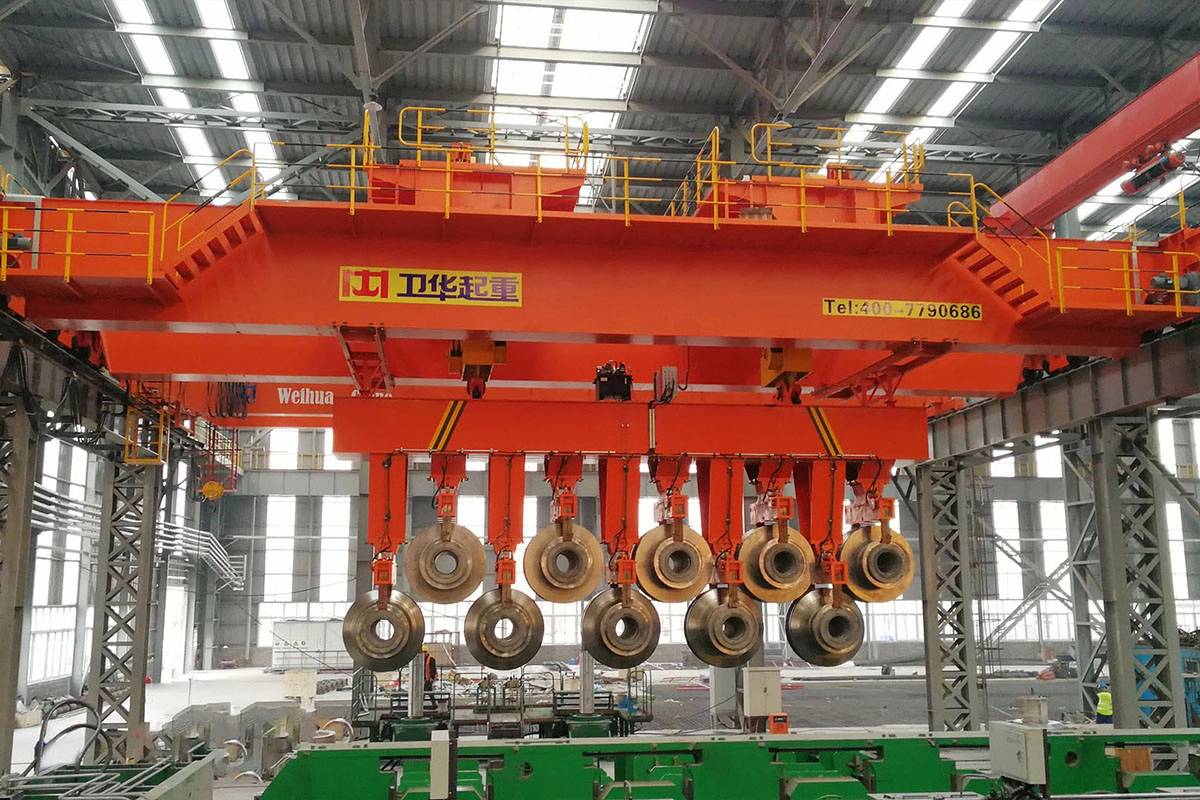

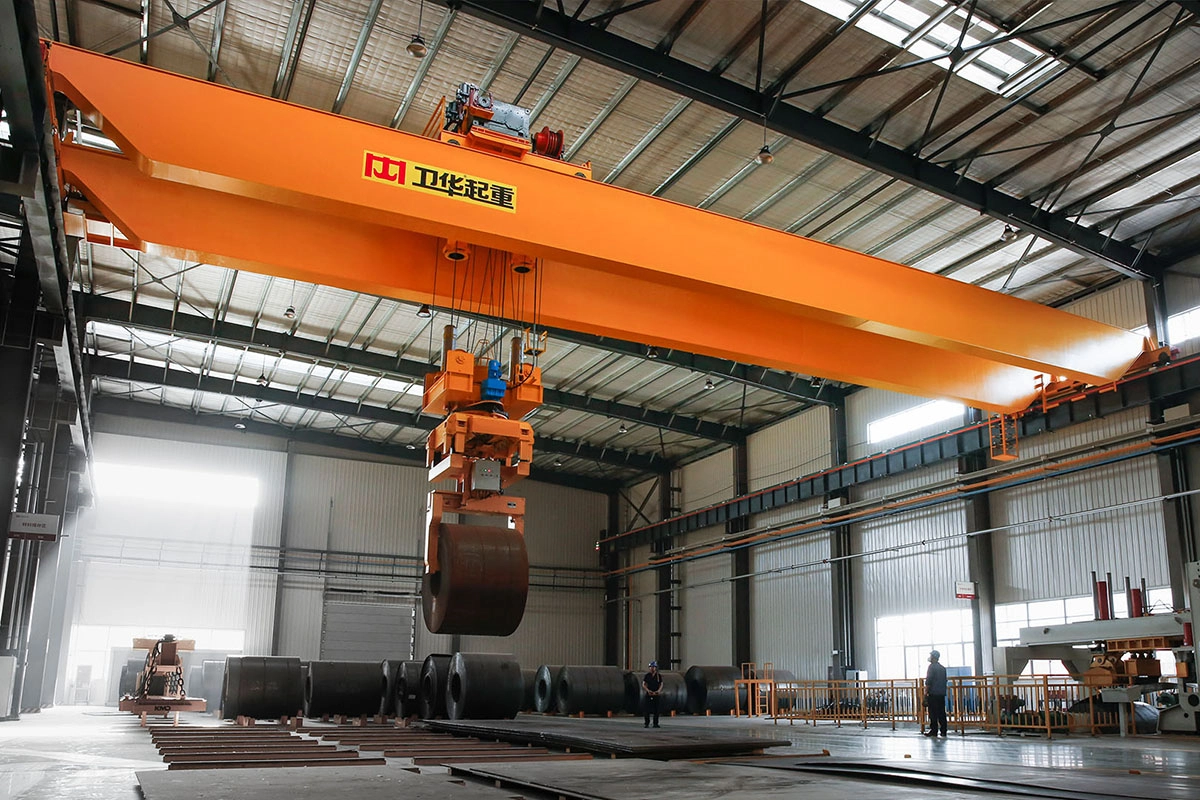

Cases
