Description

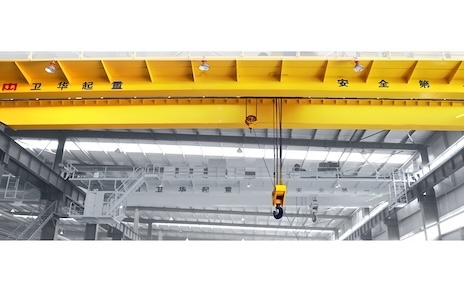

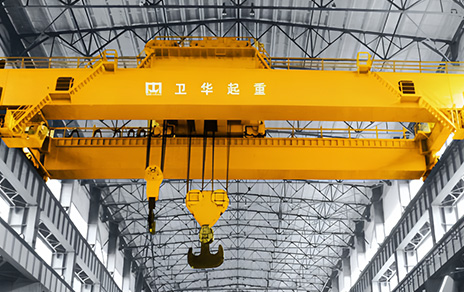

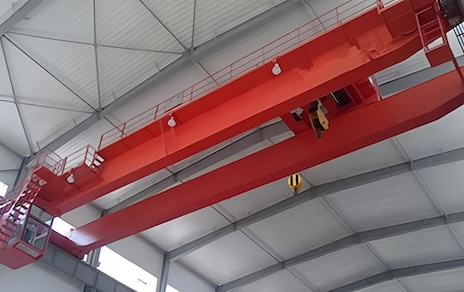

QD Double Girder Hook Overhead Crane is a kind of heavy-duty industrial overhead crane, which adopts a double main girder structure and is equipped with hooks as spreaders to realize precise lifting and horizontal movement. It is widely used in factories, warehouses, steel mills, hydropower stations, and other places for lifting and handling materials.
Weihua is a professional overhead crane manufacturer, provides one-stop customized solutions for QD double girder hook overhead cranes. Whether it's customized design for special working conditions or high safety standard lifting equipment, we can tailor-make it according to your specific needs and site conditions. Feel free to contact us to get customized solutions for your business.
Hook Overhead Crane Parts
Hook overhead crane mainly consists of five core components: metal structure, hoisting mechanism, operating mechanism, electrical system, and safety device.
The trolley travel mechanism is on both ends of the bridge. It can drive the overhead crane along the factory or dock along the rails. This allows the overhead crane to adjust its working position over a wide range. The trolley moves along the rails, which allows flexible positioning of the lifting mechanism. It is responsible for the vertical lifting and lowering of heavy loads. This ensures smooth and safe lifting thanks to a precise transmission system and a braking device. The electrical system provides power to each mechanism of the overhead crane. It also precisely controls its operation, including motors, controllers, limit switches, etc., to ensure safe and accurate operation.
Specifications
| Model | QD type | |||||||||||
| Lifting capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 75/20 | 100/20 | |||
| Max.lifting height | Main lifting | m | 16 | 16 | 16 | 12 | 16 | 12 | 20 | 22 | ||
| Max. lifting height | m | 18 | 14 | 18 | 16 | 22 | 22 | |||||
| Span | m | 10.5-31.5 | 13.5-31.5 | 13-31 | ||||||||
| Lifting speed | Main | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | 6.1 | 3.9 | ||
| 15.6 | 10.4 | 10.7 | 9.8 | 9.5 | 7.8 | 6.1 | 4.9 | |||||
| Aux. | 14.6 | 15.5 | 15.5 | 10.4 | 7.2 | 7.2 | ||||||
| Trolley traveling speed | m/min | 37.2 | 37.2 | 40.0 | 40.0 | 42.6 | 38.5 | 38.4 | 33.90 | |||
| Crane traveling speed | A5 | m/min | 68.3/70.4 | 70.4/71.8/73.4 | 70/72/72.8 | 70/72/73 | 74.2/75.1 | 75/75/72 | 53.9 | 61.7 | ||
| A6 | 68.3/71.1/88.9 | 71.1/74.2/74.2 | 70/72/73 | 71.3/73.6/73.6 | 75 | 75/75/74 | 77.8/67 | 61.8 | ||||
| Power Supply | 3 Phrase A.C. 50Hz 380V or others | |||||||||||
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Strong practicality and long service life
High-quality materials and rigorous technology ensure stable performance under prolonged use and high-frequency lifting operations, resulting in a long service life.
High load capacity and high working level
The high lifting capacity allows the machine to handle a wide range of lifting weights, both light and heavy.
Flexible operation
Flexible operation is expressed in the precise control of trolley operation, lifting and lowering of the hook.
Safe, reliable and economical
With perfect safety devices, it provides stability during operation, comprehensive operation safety protection. Providing high quality and performance, it also has good price competitiveness, giving
