Description

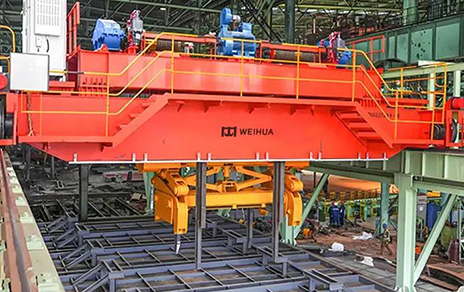

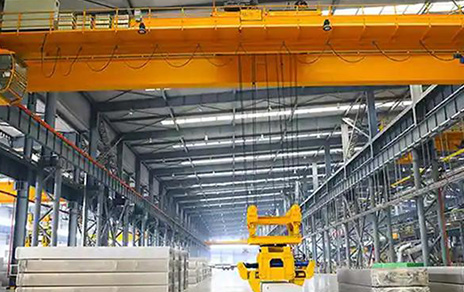

Overhead slab handling crane equipment, also called a billet crane. It is a heavy-duty handling equipment, specially designed for continuous casting and rolling production lines in the iron and steel industry, which is mainly used for transferring, stacking, loading, and unloading of high-temperature and normal-temperature slabs. The equipment can adapt to high temperature working conditions above 650℃ and meet the lifting requirements of slabs or blooms with a thickness of ≥150mm. It is widely used in key production areas such as continuous casting billet span, billet storage, heating furnace, and finished product storage.
Specifications
| This slab crane is designed for efficient and secure handling of heavy billets, featuring adjustable clamps that can be configured either perpendicular or parallel to the beam for versatile load positioning. Below are the key parameters for each clamp orientation: | |||||||
| Clamps perpendicular to the beam: | |||||||
| Lifting Capacity | Span | Lifting Height | Work Duty | Lifting Speed | Crane Traveling Speed | Trolley Traveling Speed | Track |
| 35 ton | 27.5 m | 12 m | A7 | 1.2~12 m/min | 4.2~42 m/min | 8.5~85 m/min | QU120 |
| 50 ton | 37 m | 12 m | 0.95~9.5 m/min | 3.8~38 m/min | 8~80 m/min | ||
| 65 ton | 35.5 m | 12 m | 0.78~7.8 m/min | 3.8~38 m/min | 7.5~75 m/min | ||
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
High Temperature Resistant Design
Adopting a heat-insulating coating and a water-cooling system, it can withstand high temperatures over 650℃ for a long time. Key components (such as wire rope, bearings) are made of high-temperature resistant and anti-wear materials.
Intelligent clamping system
Configured with rigid/flexible/rotary clamps, hydraulic/electric clamping mechanism for stable gripping, and some models are equipped with an auto-centering function.
High-precision operation
frequency conversion speed control + encoder positioning (±10mm), equipped with anti-skew and double braking system to ensure accurate and safe handling.
Intelligent control integration
PLC + frequency conversion coordinated control, support for remote monitoring, fault diagnosis, and MES system docking, to realize automated operation.

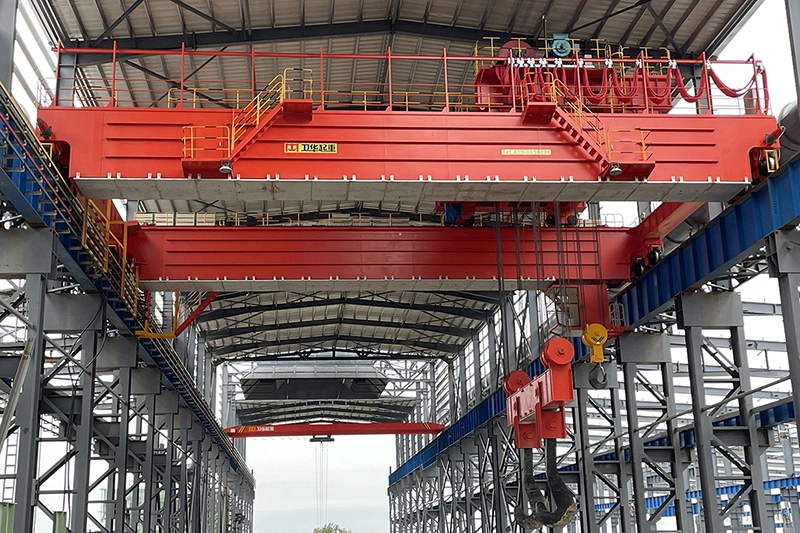

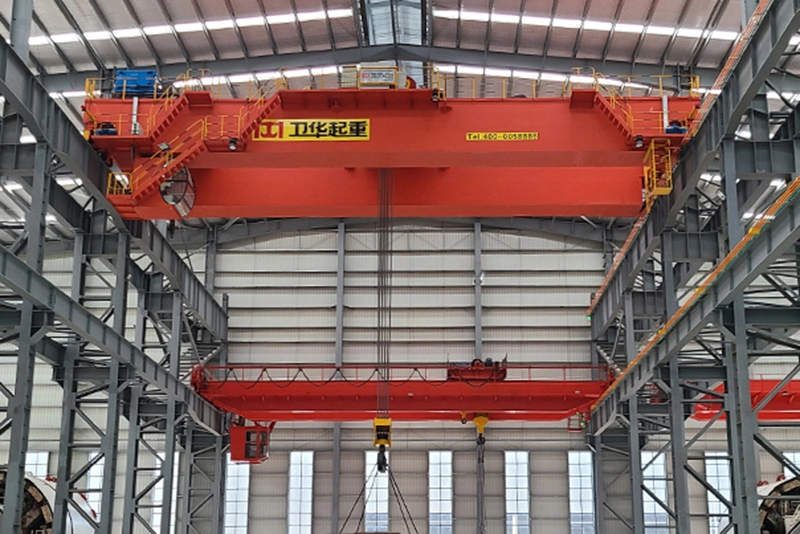

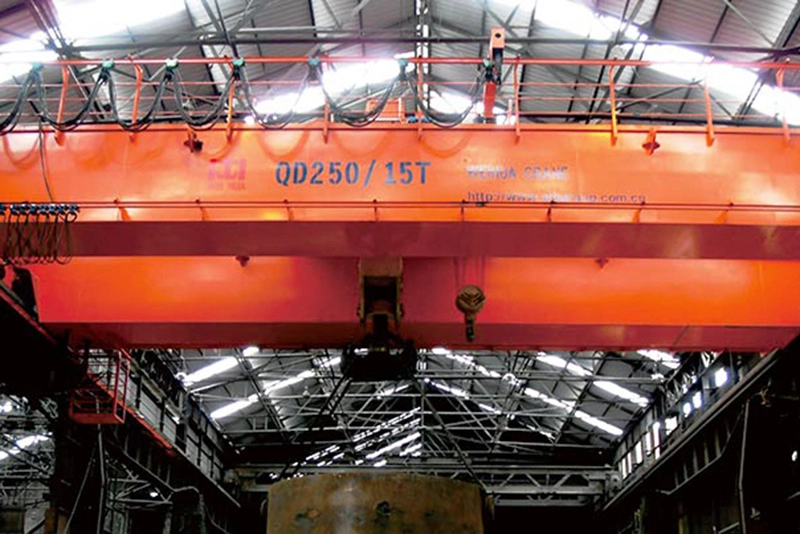

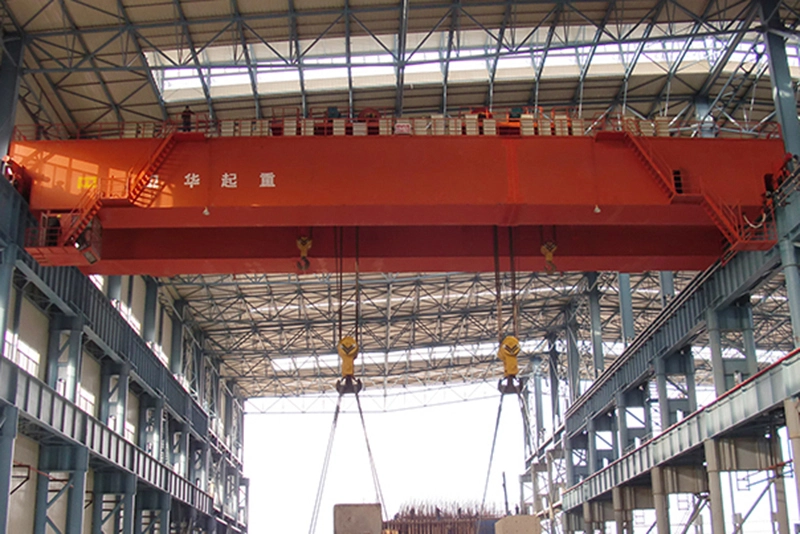

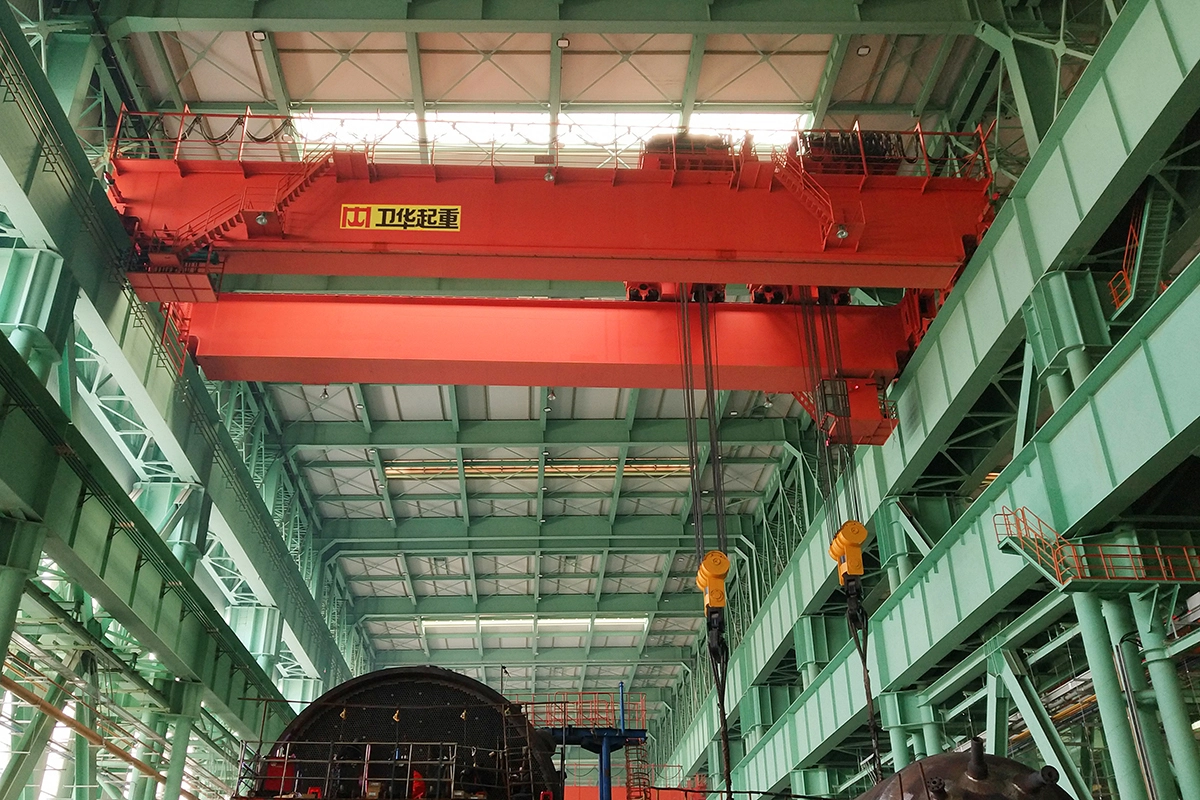

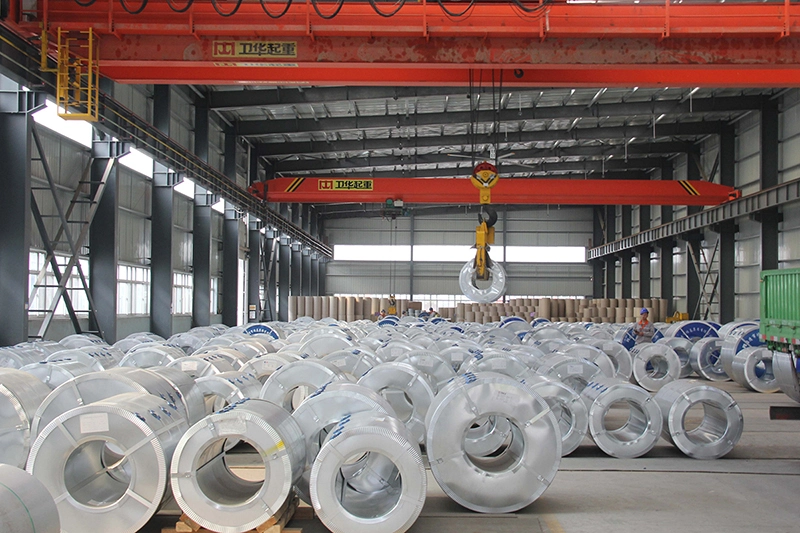

Cases
