Description

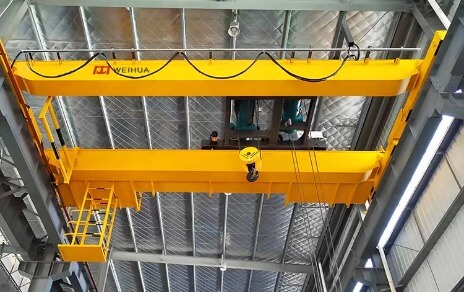

A LH type double-girder hoist overhead crane is a lifting device designed for efficient material handling. Its robust structural design delivers high load-bearing capacity and flexible operational performance, making it suitable for a wide range of industrial environments. The core of this overhead crane is a bridge structure composed of two main beams and end beams. The box-type bridge frame not only enhances overall rigidity but also ensures stable operation during lifting and traveling. Rails mounted on the main beams allow the electric hoist to move laterally, enabling smooth and precise positioning for lifting and handling operations. As the primary lifting mechanism, the electric hoist is a key component of the LH-type overhead crane. It travels freely along the rails to handle materials at various positions. Equipped with its own lifting function, the electric hoist raises and lowers loads via drums and wire ropes. This double-beam hoist overhead crane has become an indispensable material handling solution across many industries. Whether in manufacturing workshops or logistics and storage centers, it significantly improves production efficiency and reduces labor intensity.
Specifications
| Capacity(ton) | 5 | 10 | 16/3 | 20/5 | 32/5 |
| Span(m) | 10.5-31.5 | ||||
| Lifting Height(m) | 6/9/12/18/Other height | ||||
| Trolley Traveling Speed(m/min) | 20 | ||||
| Model of Electric Hoist | CD1(MD1) | ||||
| Cabin Traveling Speed(m/min) | 20 | ||||
| Crane Traveling Speed-Ground Control(m/min) | 20 | ||||
| Working Class(FEM/ISO) | A3/A4 | ||||
| Power Source | 3 Phase A.C.50HZ 380V | ||||
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Structure
Compact and lightweight construction with minimal wheel load.
Lifting Mechanism
Equipped with CD/MD type electric wire rope hoists.
Components
Main beams and end beams are welded for robust structural integrity.
Low Headroom
Optimized design to maximize lifting height, ideally suited for facilities with limited overhead clearance

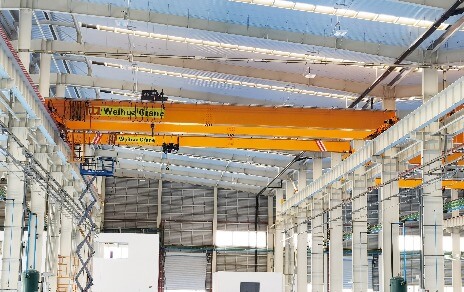

Cases
