Description

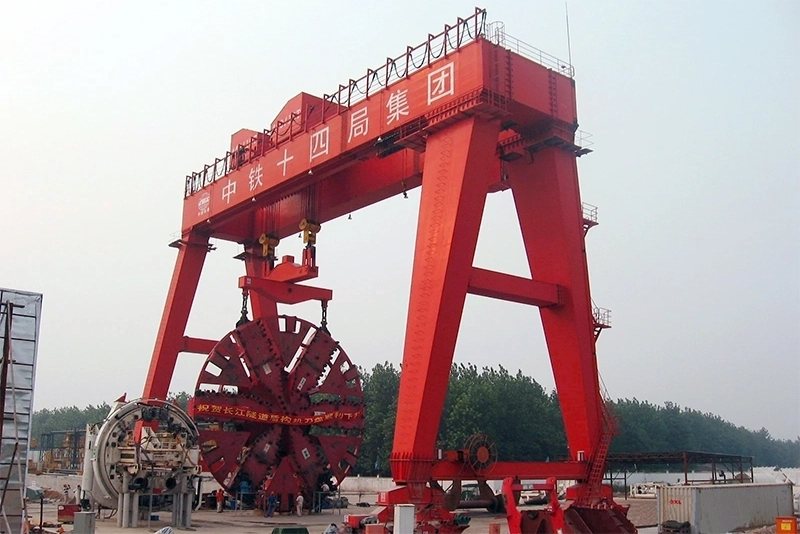

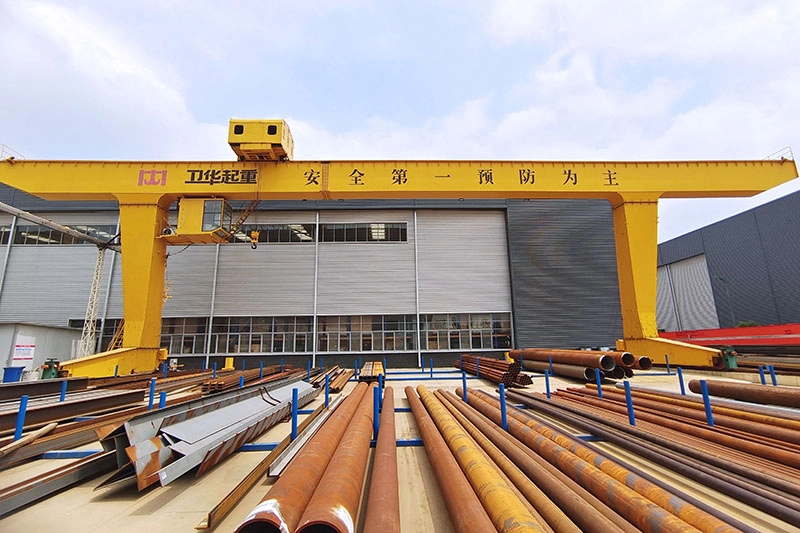

Weihua Shield Gantry Crane, also known as TBM Gantry Crane, is a specialized heavy-duty lifting equipment launched by Weihua Group for the tunnel engineering construction field. Named for its unique shield-shaped lifting device, it is primarily used for the installation and dismantling of the cutterhead and shield body of underground trenchless shield tunneling machines (TBMs), as well as the lifting and transport of tunnel support segments during construction.
Shield gantry cranes are indispensable key supporting equipment in tunnel construction. As the core equipment for underground tunnel excavation, the installation and dismantling of large components such as the cutterhead (weighing tens to hundreds of tons) and shield body, as well as the precise assembly of each ring of tunnel segments, all rely on the support of specialized gantry cranes. Weihua Shield Gantry Cranes are a professional solution designed to meet these demanding working conditions.
Structurally, the shield gantry crane adopts a double-girder gantry structure, combined with a professional 360° rotating lifting device and a dual-trolley collaborative operation mechanism, ensuring the precise installation of TBM components at various angles. The electrical system employs PLC variable frequency speed control, ensuring smooth operation and precise positioning. The safety system is comprehensively equipped with overload protection, limit protection, and emergency stop devices to maximize the safety of operators and equipment.
The standard lifting capacity ranges from 100 tons to 440 tons, with a maximum lifting capacity exceeding 500 tons, meeting the hoisting needs of large tunnel boring machines. Applicable spans range from 18 meters to 36 meters, and lifting heights range from 33 meters to 40 meters (or 30 meters below the lower rail), satisfying the construction requirements of various tunnel diameters and depths. The working class is typically A3 or A4, adapting to the operational frequency characteristics of tunnel construction.
As Weihua Group's flagship product for tunnel engineering, the shield tunneling gantry crane is widely used in various underground engineering projects such as urban subways, railway tunnels, water conservancy tunnels, and highway tunnels, playing a crucial role in major infrastructure projects in China and globally. Weihua has over 30 years of crane manufacturing experience, with products exported to more than 130 countries and regions worldwide, and a cumulative production of over 1 million units (sets) of various lifting equipment.
Specifications
| Rated load(Under Spreader) | 100+100 | 100 | 130 | |||||||
| Span | m | 33 | 34 | 20 | 22 | 24 | 20 | 22 | 24 | |
| Lifting Height | 1500+21000 | 9800+30000 | 9800+30000 | |||||||
| Duty | A4 | A4 | A4 | |||||||
| Speed | Main | m/min | 0.3~3~6 | 0.37~3.7~6 | 0.37~3.7~6 | |||||
| Trolley Traveling | 2.5~25 | 2.5~25 | 2.5~25 | |||||||
| Crane Traveling | 2~20 | 1.4~14 | 1.4~14 | |||||||
| limit dimension |
L1 | mm | 1850 | 1270 | 1250 | |||||
| L2 | 850 | 1270 | 1250 | |||||||
| L | 3000 | 3000 | 3000 | |||||||
| C1 | 2500 | 1750 | 1750 | |||||||
| C2 | 2500 | 1900 | 1900 | |||||||
| main dimension |
H | mm | 21000 | 16240 | 15920 | |||||
| H1 | 15000 | 9800 | 9800 | |||||||
| H2 | 21000 | 30000 | 30000 | |||||||
| H3 | 650 | 660 | 660 | |||||||
| B | 19038 | 16380 | 16180 | |||||||
| W | 12000 | 10700 | 10700 | |||||||
| K | 5000 | 6500 | 6500 | |||||||
| D | 13000 | 6300 | 6300 | |||||||
| Max.Wheel Loading | kN | 270 | 290 | 230 | 235 | 240 | 270 | 275 | 280 | |
| Total Power | kw | 225 | 145 | 145 | ||||||
| Crane Rail Recommended | QU80 | QU80 | QU80 | |||||||
| Power Supply | 3-Phase A.C.50Hz 380V | 3-Phase A.C.50Hz 380V | 3-Phase A.C.50Hz 380V | |||||||
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Professional Shield Tunneling Construction Design
The core value of a shield tunneling gantry crane lies in its specialized design for tunnel construction scenarios:

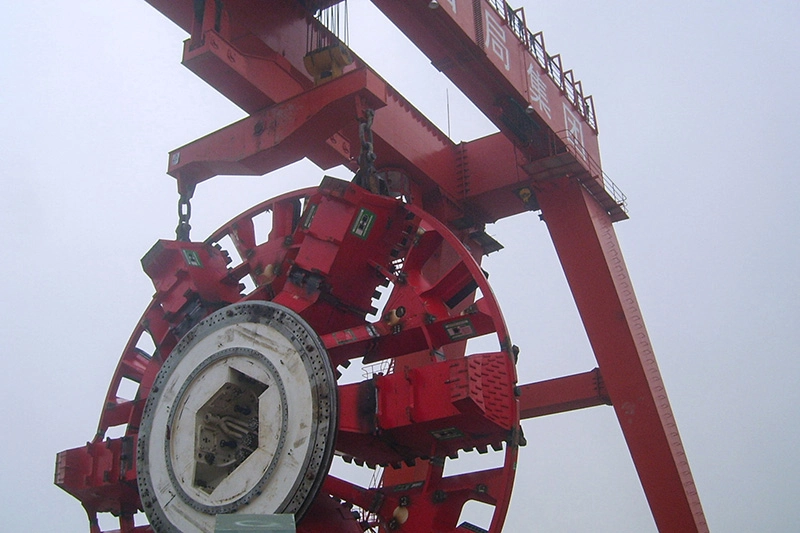

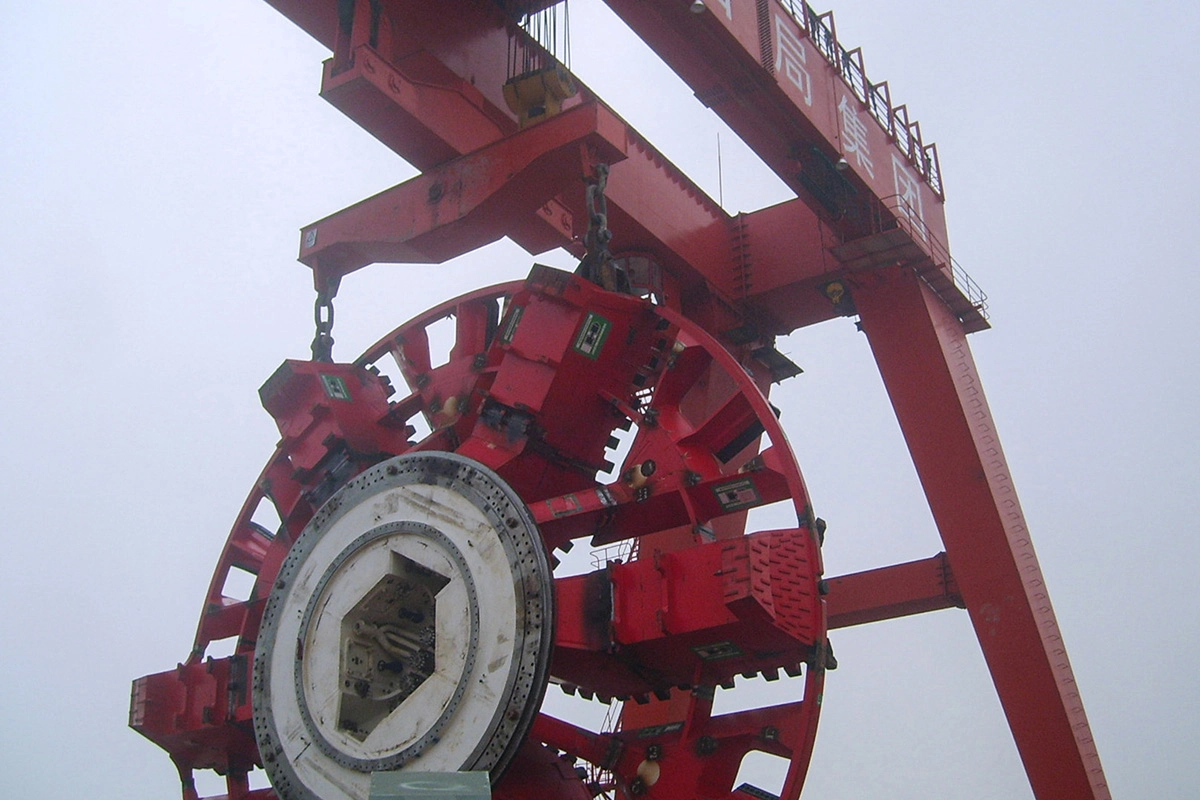

360° Rotating Lifting Gear: The lifting gear can rotate 360°, adapting to different angles for cutterhead installation. Precise positioning is required for the installation of the shield machine cutterhead. The rotating lifting gear allows operators to flexibly adjust it according to the actual tunneling direction, eliminating the need to repeatedly move the crane or adjust the shield machine's position, significantly improving installation efficiency.
Rotation Angle and Adaptability: For ultra-large diameter shield machines (applicable to cutterheads up to 15 meters in diameter), the dedicated rotating lifting gear can meet the ±90° rotation requirements, covering the spatial positioning requirements of various complex underground projects.

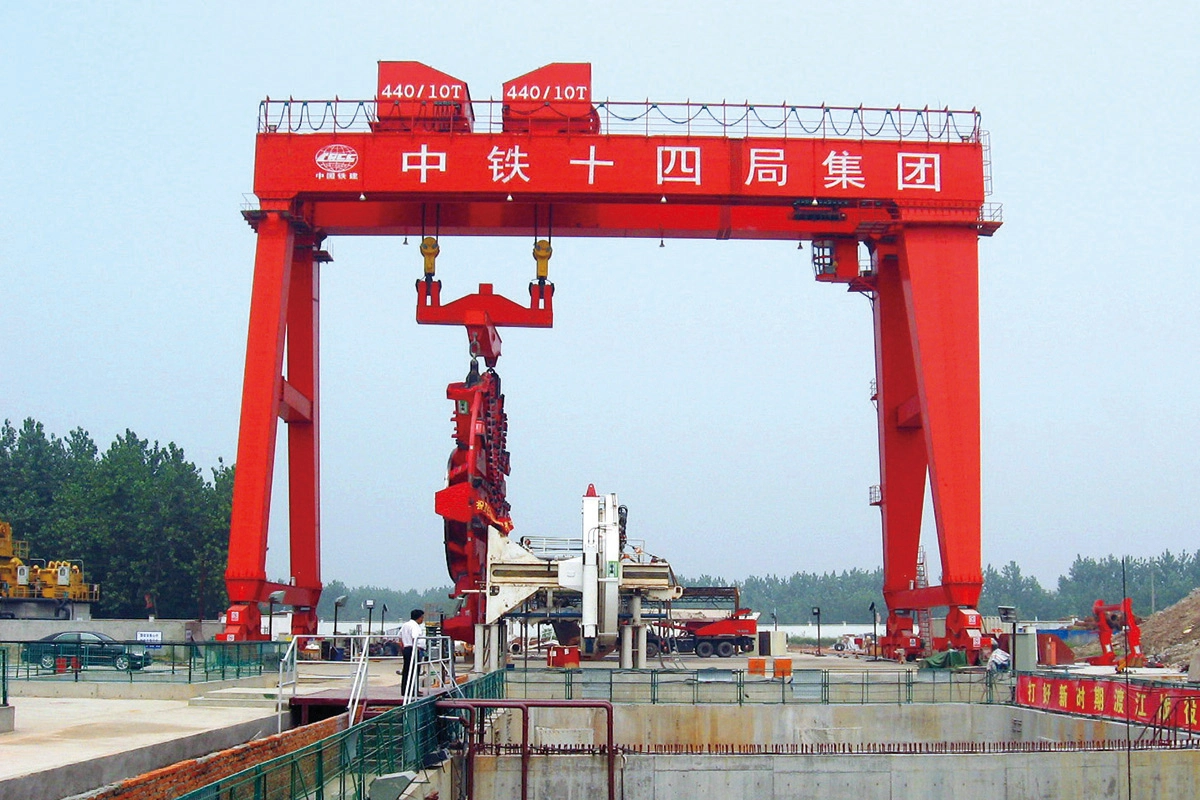

Dual Trolley Collaborative Operation Mechanism: Adopting a dual-trolley structure design, the two trolleys can work together (linked mode) to lift heavy components such as the cutterhead, or work independently (independent mode) to lift auxiliary materials such as tunnel segments. This flexible configuration meets the needs of heavy lifting while ensuring efficient workflow in daily construction.
Dedicated Lifting Device for Tunnel Boring Machines:The tunnel boring machine (TBM) gantry crane is equipped with a dedicated shield-shaped lifting device or beam to ensure reliable connection with all components of the TBM, guaranteeing safety and stability during lifting.
Ultra-Large Tonnage Load Capacity:Tunnel construction involves the lifting of numerous heavy components. Weihua TBM gantry cranes consistently lead in load capacity:
Wide Tonnage Coverage:Standard lifting capacities include 100 tons, 130 tons, 200+200 tons, and 400 tons, with customizable capacities up to 500 tons and above. For ultra-large diameter TBMs (such as 15-meter class), lifting capacities up to 400 tons or even higher can be provided.
High-Strength Double-Girder Structure:Utilizing a double-girder box-shaped welded gantry structure made of high-strength structural steel, the gantry spans the tunnel construction area, ensuring sufficient stability and load-bearing capacity. Compared to traditional designs, it offers superior structural rigidity and fatigue resistance for the same load capacity.
Lifting Capacity Performance: Main lifting speed ranges from 0.09~0.9m/min (slow speed fine-tuning) to 7m/min (rapid lifting), balancing precise positioning and operational efficiency. Maximum wheel pressure reaches 415kN, equipped with QU80 or QU100 heavy-duty rails to ensure reliability under heavy loads.
PLC Variable Frequency Precision Control
Weihua shield tunneling gantry cranes utilize advanced control technology to achieve precise operation in the complex environment of tunnel construction:
PLC Variable Frequency Speed Control System: The lifting, trolley travel, and main trolley travel mechanisms all employ variable frequency drive technology, achieving unified scheduling through a PLC programmable controller. Each mechanism achieves smooth acceleration characteristics and precise speed control, enabling millimeter-level accuracy in the installation and positioning of large components such as the cutterhead and shield body.
Multi-Mechanism Linkage Control: Supports multiple operating modes such as dual trolley linkage and main/auxiliary hook coordination. The control system boasts a high degree of automation, is easy to operate, and reduces the burden on operators.
Intelligent Monitoring and Safety Alerts: The cab (control panel) is equipped with comprehensive safety indicators and status displays, monitoring equipment operating parameters in real time. In case of abnormal operating conditions, the system automatically alarms and prompts the operator to take appropriate measures.
Flexible Control Methods: The standard cab control provides excellent visibility and comfort; remote control is optional, allowing operators to complete complex lifting operations from the optimal viewing position.
Tunnel Adaptability
The shield tunneling gantry crane is designed with the special environment of tunnel construction sites in mind:
Compact Structural Design: The gantry structure spans the tunnel construction ar
