Description

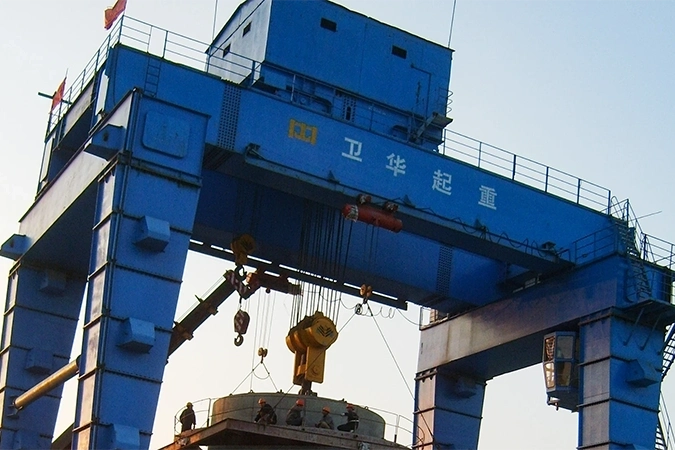

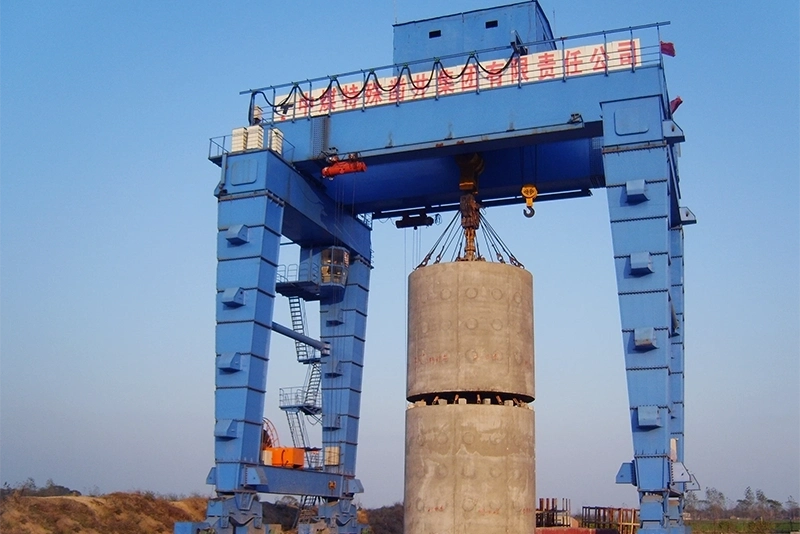

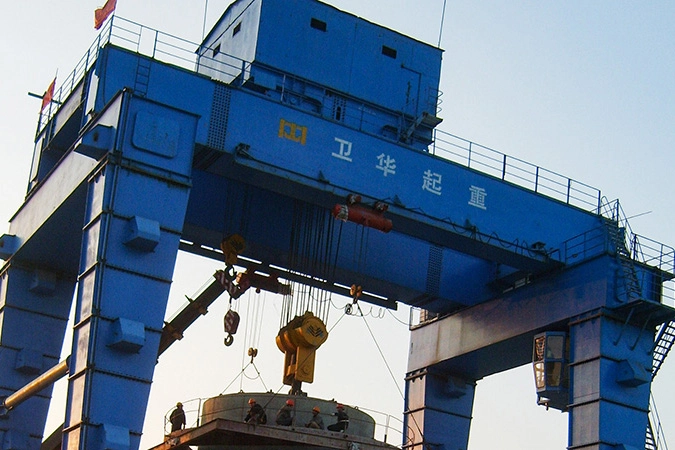

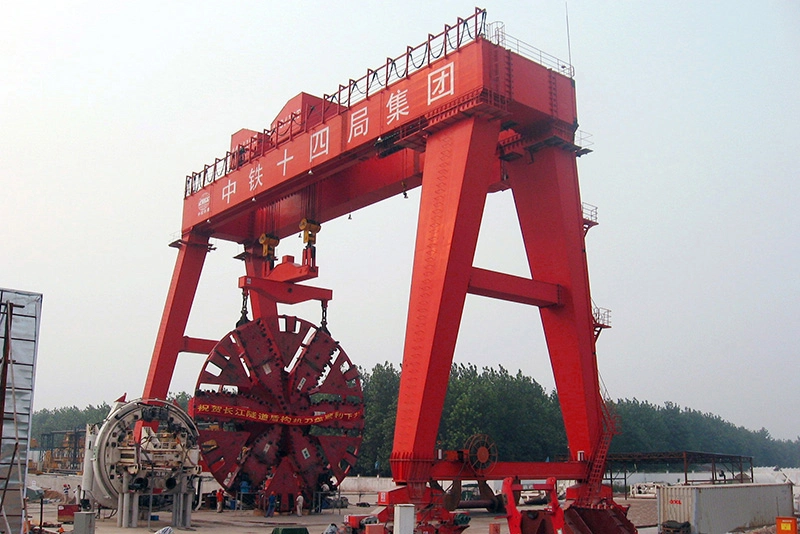

Weihua Engineering Hook Gantry Cranes are heavy-duty material handling equipment specifically designed for various engineering construction scenarios. They are widely applicable to loading, unloading, and lifting operations at construction sites for highways, bridges, power plants, water conservancy projects, and large-scale infrastructure projects. As a core supporting equipment for engineering construction, this product plays an irreplaceable role in material flow, equipment installation, and component hoisting at project sites.

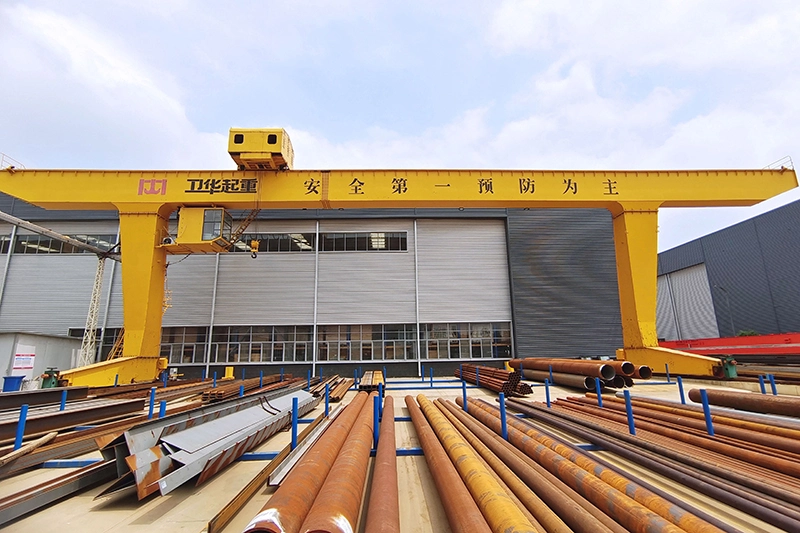

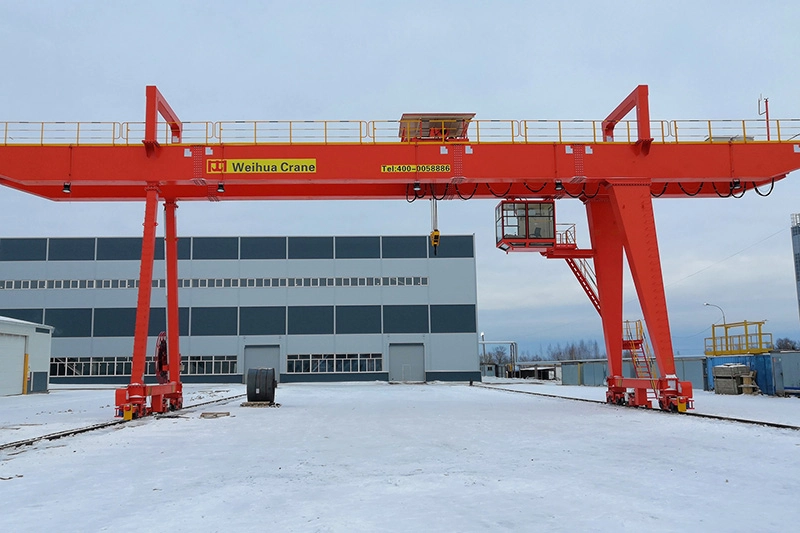

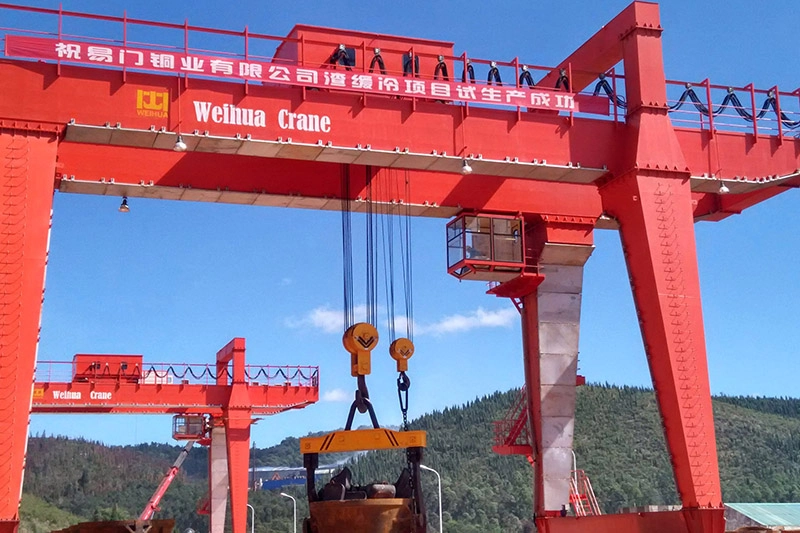

This series of cranes uses a hook as the main lifting device, featuring a compact structure, stable and reliable performance, and adaptability to complex and changing working environments at construction sites. The product range covers a wide range of lifting capacities from 5 tons to 800 tons, and can be provided in various structural forms such as single main beam (L-type, C-type) and double main beam (A-type, U-type) according to project requirements, as well as three gantry structure configurations: double cantilever, single cantilever, and no cantilever.
In terms of structural design, the engineering hook gantry cranes follow a modular design concept. The bridge frame adopts a box-shaped welded structure, characterized by high rigidity, low deformation, and strong load-bearing capacity. The trolley traveling mechanism employs a separate drive system to ensure the synchronization and reliability of the entire machine's operation. All mechanisms are operated from the control room, but wireless remote control operation can also be selected according to project needs.
Product Positioning: The engineering hook gantry crane is a professional lifting equipment launched by Weihua Group for the engineering construction field. Relying on Weihua's more than 30 years of crane manufacturing experience and a strict quality control system, it is committed to providing safe, efficient, and reliable material handling solutions for global engineering construction.
Specifications
| Lifting Capacity | Main | t | 40 | 60 | 80 | 100 | ||||||
| Aux. | - | - | - | - | ||||||||
| Span | m | 20 | 30 | 40 | 20 | 30 | 40 | 20 | 30 | 20 | 30 | |
| Lifting Height | 9 | 9 | 9 | 12 | ||||||||
| - | - | - | - | |||||||||
| Duty | A5 | A5 | A5 | A5 | ||||||||
| Speed | Main | m/min | 1 | 0.95 | 0.8 | 0.8 | ||||||
| Aux. | - | - | - | - | ||||||||
| Trolley Traveling Crane Traveling |
10 | 10 | 10 | 10.5 | ||||||||
| 14 | 15 | 15 | 13 | |||||||||
| limit dimension |
L1 | mm | 3200 | 3800 | 3200 | 3800 | 3200 | 3500 | ||||
| L2 | 2100 | 500 | 2100 | 500 | 2100 | 500 | 2600 | 650 | ||||
| L | - | - | - | - | ||||||||
| C1 | 1500 | 2000 | 2000 | 2000 | ||||||||
| C2 | 1500 | 2000 | 1500 | 2000 | 2000 | 2000 | ||||||
| main dimension |
H | mm | 14828 | 14828 | 14828 | 17466 | ||||||
| H1 | 9000 | 9000 | 9000 | 12000 | ||||||||
| H2 | - | - | - | |||||||||
| H3 | 460 | 460 | 460 | 540 | ||||||||
| B | 8286 | 8286 | 8286 | 12876 | ||||||||
| K | 3000 | 3000 | 3000 | 3500 | ||||||||
| W | 6000 | 6000 | 6000 | 7500 | ||||||||
| Max.Wheel Loading | kN | 175 | 190 | 220 | 240 | 260 | 280 | 290 | 305 | 190 | 205 | |
| Total Power | kw | 22.8 | 26 | 30 | 31.4 | 46.4 | ||||||
| Crane Rail Recommended | 43Kg/m | 43Kg/m | 43Kg/m | 43Kg/m | ||||||||
| Power Supply | 3-Phase A.C.50Hz 380V | 3-Phase A.C.50Hz 380V | 3-Phase A.C.50Hz 380V | 3-Phase A.C.50Hz 380V | ||||||||
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Customized Design for Engineering Scenarios
Weihua's engineering hook gantry cranes fully consider the special operating environments of engineering sites, demonstrating a high degree of adaptability in product design:
Wide Temperature Range Adaptability: The cranes can adapt to extreme climatic conditions at the project site. Users can customize configurations according to the minimum and maximum temperatures of the operating environment, ensuring normal operation in both frigid and scorching conditions.
Flexible Power Supply Methods: The cranes offer two power supply methods: cable and sliding contact line. Users can choose the appropriate method based on the power supply conditions and operational requirements of the project site.
Superior Lifting Performance
Hook gantry cranes use the hook as the core lifting device, and Weihua continues to lead the industry's technological development in this field:
Large Tonnage Coverage: The product series covers standard hooks from 1 ton to 500 tons, and custom-made special hooks with even larger tonnages can be provided to meet the lifting needs of all scenarios, from light to heavy items.
High-strength alloy steel material: The hooks are forged from high-strength alloy steels such as 34CrMoV, 42CrMo, and 35CrMo. Precision forging ensures excellent grain flow, minimizing stress points and extending fatigue life under repeated heavy loads.
Rigorous safety testing: Each hook undergoes non-destructive testing (magnetic particle inspection, dye penetrant testing) and verification load testing (typically 1.5 to 2 times the rated load) to ensure structural integrity complies with international safety standards such as ISO 4301, FEM 1.001, ASME B30.10, and GB/T 10051.1.
High safety factor: The design safety margin exceeds minimum regulatory requirements, with a minimum safety factor of 4:1, and 5:1 or higher for high-level applications.
Highly Reliable Crane System
As the core component of the entire lifting system, Weihua Engineering's hook gantry cranes adhere to high-quality standards at each subsystem level:
Bridge System: Utilizing a box-shaped welded structure, the steel plates undergo shot blasting pretreatment. Main welds are achieved through submerged arc welding and are subjected to ultrasonic and X-ray non-destructive testing to ensure welding quality.
Trolley Traveling Mechanism: Employing separate drive mechanisms, equipped with hardened gear reducers and 65Mn forged wheels, offering strong load-bearing capacity, smooth transmission, and excellent wear resistance.
Advanced Control System: The hoisting, luffing, and slewing mechanisms can operate independently or in combination. The operator's cab is equipped with an intelligent Chinese "Status Monitoring and Control Panel," enabling fault monitoring, dynamic monitoring of operating status, and providing dynamic graphic and textual displays. It also features safety information alarms and lubrication and maintenance management assistance functions.
Safety Protection Configuration: Cranes operating outdoors are equipped with rail clamps, anchoring devices, anemometers, and other windproof devices, as well as multiple safety protections such as overload limiters and travel limit switches.
Flexible Hook Configuration Options
Weihua Engineering's gantry cranes offer a variety of hook types to adapt to the operational needs of different engineering scenarios:
Single Hook Configuration: Suitable fo
